Aluminum Shell 400KW 2000HZ Large Melting Furnace

aluminum shell induction melting furnace for smelting iron and copper scrap

1. Brief Introduction of Medium Frequency Induction Melting Furnace:

1. Induction melting furnace power can adjust under different melt capacity requirement.
2. Fast melt speed.Can melt Waste iron,steel,copper,aluminum,aluminum cans ,lead,etc all kinds of metals.
3. Steel and Aluminum structure furnace body design.Work stable.
4. Machine have multiple protection.With Good magnetic isolation,safe and reliable.
5. Induction melting furnace are most used in foundry factory,rolling mill etc.
6. Induction melting furnace are customized under customer's workshop size.and working environment ,customer's special requirement.
7. Machine most used in foundry factory,to use the waste iron recycling to produce ingots.

2. Technical Parameter of Large Induction Melting Furnace:

3. Large Induction Melting Furnace Application:

aluminum shell medium frequency melting furnace required little area, which is easy to operate, easy to use, and inexpensive, suitable for melting all kinds of pig iron, cast iron, scrap, iron slag, etc.

4. Part of the aluiminum shell induction melting furnace:
1). Furnace Parts: The mechanical parts of the MF furnace consisted of furnace pot,water power introduced into the system, titling device and other parts.
2). Furnace Ports: Furnace port including furnace shell, induction coil etc.
3). Furnace Shell:

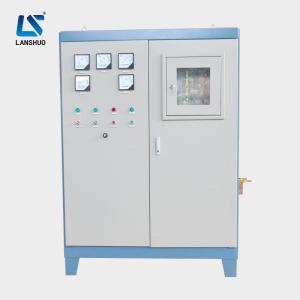

Main Power Cabinet	Furnace Shell	Reducer	Water Cooled Cable	Crucible Mould	Induction Coil

5. Large Induction Melting Furnace Advantage:

1. High melting efficiency, good power saving effect, compact structure and strong overload capacity.
2. The surrounding of the furnace is low temperature, smoke less, the working environment is good .
3. Simple operation and reliable operation.
4. Fast temperature heating-up, furnace temperature easy to control, 5.high production efficiency.
6. High efficiency and energy consumption less than 550KWH/T
7. Selenium steel made of magnetic yoke of the magnetic field lines generated by the induction coil has played the role of shielding emission to reduce the magnetic leakage so that it improves the efficiency and energy saving is 5%~8%.
8. Electronic components using well-know brands at home and abroad.Long arc yoke shield and reduced external magnetoresistance,shielding leakage at both ends of the coils,The inner side and outer wall of the magnetic yoke(arc section ) are in close contact with each other ,increased the area of effectivepermeability.So that the coils is better supported.

industrial metal melting furnace

steel melting induction furnace

Aluminum Shell 400KW 2000HZ Large Melting Furnace Images
