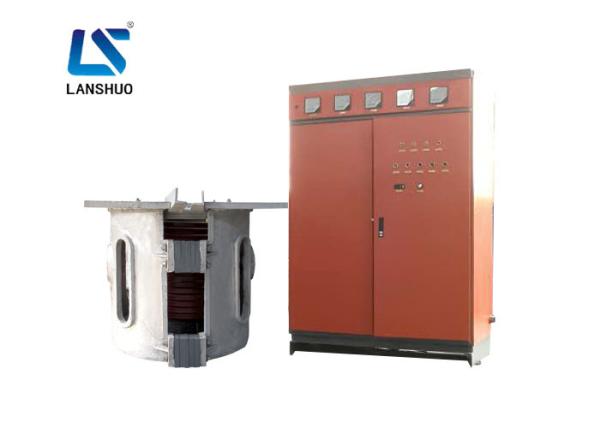

Aluminum Shell 400KW 2000HZ scrap Iron steel induction melting furnace machine
1. Brief Introduction of Medium Frequency Induction Melting Furnace:
Induction Melting Furnace Applications used for steel, iron ,copper ,aluminum melting before casting.This electric furnace is applicable for melting, heating and holding of steel, copper, inron, aluminum, zinc, tin, nickel and toher ferrous of nonferrous metal.This electric melting furnace can also be used for forging, sintering and tube-bending forming in casting and melting industrials.
2. Technical Parameter of Large Induction Melting Furnace:
| Model | KGPS-0.5T/400KW |
| Rated Power | 400kw |
| Rated Capacity | 0.5T |
| Matching transformer's capacity | 500KVA |
| Voltage | 380V, 50/60HZ |
| MF Frequency | 2000HZ |
| Medium Voltage | 750V Phase |
| DC Voltage | 500V Phase |
| DC Current | 800A Phase |
| Rated Temperature | 1600°C |
| Closed Loop Water Cooling Tower | LSN-30B |
3. Large Induction Melting Furnace Application:
aluminum shell medium frequency melting furnace required little area, which is easy to operate, easy to use, and inexpensive, suitable for melting all kinds of pig iron, cast iron, scrap, iron slag, etc.
4. Part of the aluiminum shell induction melting furnace:
1). Furnace Parts: The mechanical parts of the MF furnace consisted of furnace pot,water power introduced into the system, titling device and other parts.
2). Furnace Ports: Furnace port including furnace shell, induction coil etc.
3). Furnace Shell:
| Main Power Cabinet | Furnace Shell | Reducer | Water Cooled Cable | Crucible Mould | Induction Coil |
 |  |  |  |  |  |
5. Large Induction Melting Furnace Advantage:
Induction Melting Furnace Features fast speed of melting, energy saving, less burnt loss, pure molten liquid.
Customerized design acceptable,No pollution,High heating speed,Low power consumption,High temperature accuracy ,Melting furnace's aluminum frame is adopted to small capacity melting furnace with reasonable structure and small capacity, convenient installation and simple maintenance, low maintenance cost.
Induction Melting Furnace steel structure ( frame structure and cylinder structure ) is adopted to large capacity electric melting furnace which is equipped with magnetic yoke. The yoke will shield and reduce magnet leakage and prevent furnace body from over-heating, thus will improve efficiency and sustain the induction coil at the same time. Thus will enhance the strength and reduce noise.
